Fully Automatic Vortex Grinding Machine

Dongguan Xindingsheng Intelligent Grinding Technology Co., Ltd. is one of the leading manufacturers and suppliers of fully automatic vortex grinding machine in China, featured by quality products and good price. Please rest assured to wholesale bulk customized fully automatic vortex grinding machine from our factory. For quotation, contact us now.

Core Performance

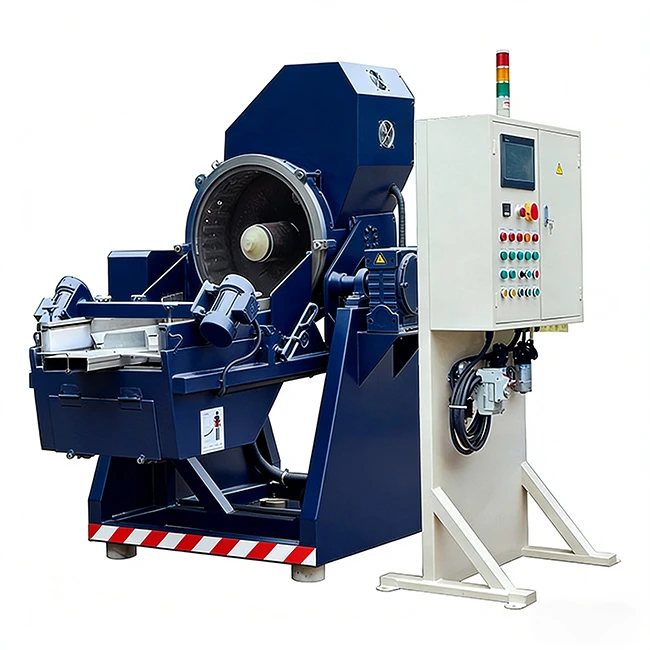

The GSA-240A is a heavy-duty large-capacity automatic eddy current finishing machine designed for mass & large-scale production, featuring strong power, high loading capacity, stable operation and high intelligence.

• Dual-tank linked eddy grinding structure: 7.5KW heavy-duty motor drives dual rotating discs, grinding efficiency doubled compared with standard models.
• Ultra-wear-resistant design: Thick-walled manganese steel tank with 30mm imported PU lining (80% longer service life), wear, impact and tear resistant for heavy-load grinding.
• Fully enclosed automatic system: Equipped with intelligent temperature control, automatic liquid replenishment and slag discharge; optional anti-collision partitions, electromagnetic sorting and grinding fluid circulation system for unmanned production.

Exclusive for mass large-scale precision parts processing, ideal for automotive, engineering machinery, hardware fastener and large die-casting industries:

• Processes large special-shaped parts, heavy hard metal parts (unprocessable by small-capacity machines)
• Applied to chamfering, deburring, polishing of automotive die-casting parts, large stainless steel fasteners, heavy CNC parts, thick-wall stampings
• One-stop processing from rough grinding to fine polishing, greatly improving large-scale production efficiency

Main Structure

Consists of dual grinding tank assembly, automatic sorting system, heavy-duty frame, intelligent flip discharge mechanism, industrial electrical cabinet and grinding fluid circulation system:

1. Dual grinding tanks: 240L total capacity, 30mm PU lining, independent/synchronous 90° automatic flip discharge
2. Automatic sorting: Electromagnetic vibration sorter with multi-layer screens (99.8% sorting efficiency), automatic abrasive recycling
3. Heavy-duty frame: H-shaped steel welded, stress-relieved, low vibration for heavy-load stability
4. Intelligent discharge: Servo drive, adjustable flip angle, anti-jamming & overload protection
5. Industrial control cabinet: IP54, PLC + 10-inch touch screen, MES system compatible
6. Grinding fluid circulation: Filtering, automatic replenishment and slag discharge, eco-friendly & cost-saving

Working Principle

Based on centrifugal eddy current grinding: Dual rotating discs generate super strong centrifugal force, forming high-density spiral eddy motion of abrasives, workpieces and fluid. All-round friction & rolling covers inner holes and dead corners, realizing fast deburring and polishing. Dual-tank synchronous operation improves efficiency by 100% with uniform surface finish, no deformation or scratches.

1. Delta inverter control: 0~180r/min stepless speed (±0.5r/min accuracy), dual discs synchronous/independent speed regulation
2. 10-inch touch screen: Visual parameter setting, 10 groups of process storage, one-key recall for multi-variety production
3. All-round safety protection: Overload, overheat, over-limit, jamming and low liquid level protection with alarm & fault display
4. Intelligent sensor module: Automatic liquid replenishment, temperature control, positioning and sorting, unmanned operation
5. MES system docking: Real-time data upload for remote monitoring and production management
6. Dual power supply: Emergency power for tank reset and valve closing during power failure

1. Install on reinforced concrete ground (load ≥2000KG/㎡), adjust heavy-duty leveling feet
2. Motor insulation resistance ≥0.5MΩ, 380V three-phase power (≥50A) with reliable grounding
3. Set rotating disc gap to 1.0~1.5mm, adjust heavy-duty V-belt tension (2~3cm deflection)
4. Calibrate flip limit, sorting system and grinding fluid circulation

Operation

• Loading ratio: Workpiece:Abrasive = 1:2.5, max total loading 200L, water level 3~5cm above abrasives
• Speed setting: Rough grinding 120~160r/min, fine grinding 50~100r/min
• Fully automatic process: Grinding → liquid replenishment → discharge → sorting → abrasive recycling → reset

Maintenance

• Degrease workpieces before mass grinding
• Lubricate bearings every 300 running hours, gearbox every 500 hours
• Replace wearing parts (bearings 3520/8220, oil seals 80×110×15, PU lining) with original parts
• Clean grinding fluid system weekly, maintain electrical system monthly

1. 18-month warranty: Free on-site repair and original parts replacement for non-human damage
2. 7×24h exclusive service: 24-hour on-site response (urban), 48-hour (suburban)
3. Free training: On-site operation and maintenance training for operators
4. Lifetime support: Technical support, equipment upgrade and long-term spare parts supply
5. Note: Consumables (PU lining, screens, oil seals, filters) are not covered by the free warranty
