Vibratory Finishing Machine

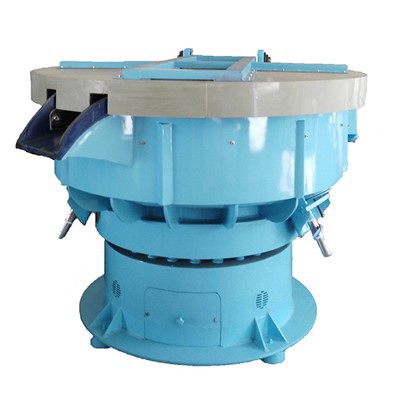

Industrial Vibratory Finishing Machines & Mass Finishing Solutions

This industrial vibratory finishing machine is engineered for high-volume deburring, radiusing, surface smoothing, and polishing of metal components. Built around a stress-relieved, heavy-gauge welded steel trough lined with high-resilience wear-resistant polyurethane, the unit utilizes dual matched heavy-duty vertical vibratory motors to generate a helical rolling action. This forces parts and abrasive media to flow uniformly, eliminating manual hand-finishing bottlenecks in CNC machining, stamping, and casting facilities.

First 12 Last 1/2

Complete Product Range for Metal Surface Finishing

Grinding & Polishing Machines

Rectangular Tub Vibratory Finishers: Optimized for processing long, linear, or large structural parts that risk entanglement in circular bowls. Features partitioned chambers to prevent part-on-part impingement.

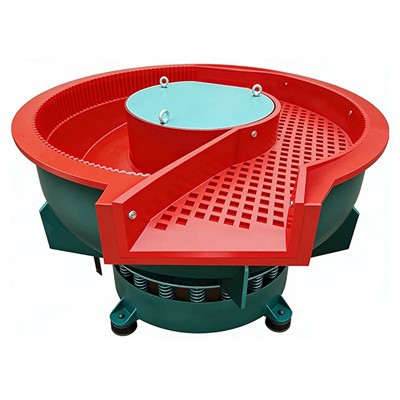

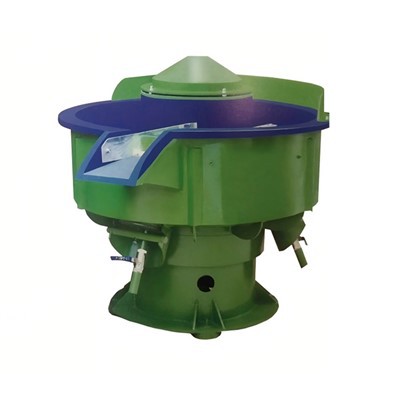

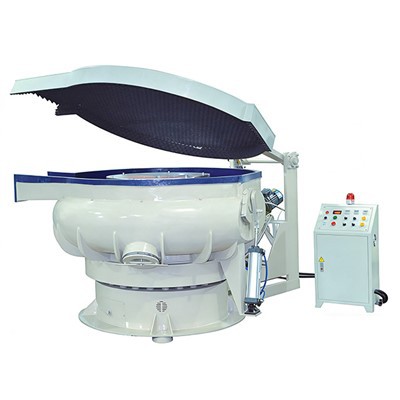

Circular Bowl Vibratory Finishers: Designed for general-purpose batch processing of small to medium components with integrated internal separation ramps for automated media-part sorting.

High-Energy Centrifugal Barrel Machines: Utilizes high-G centrifugal force for aggressive rapid cutting and mirror-finish polishing on precision aerospace and medical components.

Abrasive Media

Ceramic Media: High-density formulation engineered for aggressive heavy stock removal, rapid deburring, and preparation of ferrous metals and heavy alloys.

Plastic/Resin Bonded Media: Lightweight abrasive matrix designed for softer non-ferrous metals (aluminum, brass, zinc) to achieve fine surface smoothing without edge rounding or surface pitting.

Stainless Steel & Carbon Steel Shapes: Non-abrasive burnishing shapes (balls, pins, diagonals) used for impact compaction, work-hardening, and mirror-finish burnishing.

Integrated Grinding & Polishing Process

Load Phase

Precision-weighed batches of raw metal parts and graded abrasive media are loaded into the polyurethane-lined work chamber along with metered water and chemical compound.

Vibratory Action Phase

Dual vibratory motors induce a controlled 3D spiral vortex, causing the media to scour and shear against part edges and interior cavities at adjustable frequencies (1,000 to 1,500 RPM).

Compound & Effluent Management

Peristaltic dosing pumps continuously inject fresh compound while spent solution and suspended metal fines flush out through integrated drainage grates.

Separation & Discharge

The pneumatic internal separation gate drops into place, directing the mass flow onto a polyurethane screening deck where finished parts discharge externally while media recycles into the holding hopper.

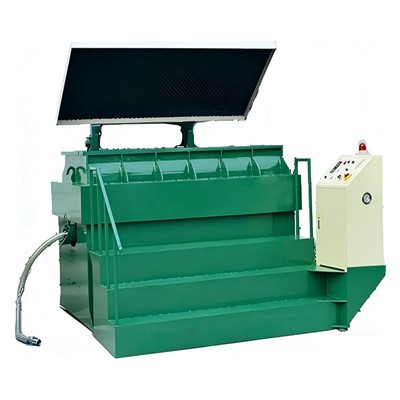

Horizontal Eco-Friendly Vibratory Finishing Machine

Applications

Automotive: Transmission gears, stamped brackets, and precision fuel injection components requiring burr-free edges and controlled surface roughness (Ra).

Aerospace: Turbine blade root slots, structural aluminum airframe struts, and titanium fastener assemblies demanding strict micro-inch finish control.

Medical Device: Orthopedic implants, surgical instruments, and stainless steel bone plates requiring crevice-free surface polishing to prevent bacterial adhesion.

General Industrial Hardware: Hydraulic valve blocks, pneumatic fittings, architectural brass hinges, and stamped electrical enclosures.

Customized Grinding & Polishing Solutions

Custom Chamber Geometry

Engineering of specialized divider walls, extended length troughs, or customized bowl radii to accommodate oversized or delicate geometry workpieces.

Automated Wastewater Closed-Loop Systems

Integration with centrifugal separators, flocculation tanks, and filter presses to recycle process water and meet environmental discharge limits.

PLC & HMI Automation

Custom control panels featuring recipe storage for cycle times, automatic water-compound dosing intervals, and pneumatic gate sequencing.

Material Handling Integration

Overhead hoist loaders, media storage silos, and magnetic separation conveyors configured for continuous manufacturing lines.

Quality Control & Process Verification

Dynamic Balancing

Every vibratory motor rotor and machine frame assembly undergoes dynamic balancing on computerized test rigs to restrict operational vibration transfer to factory flooring.

Polyurethane Durometer Audit

Trough linings are cast using high-grade prepolymer polyurethane, verified for a Shore A hardness of 90 to 95 and tested for bond strength against steel substrates via peel testing.

Weld Integrity Inspection

Structural frames and tub weldments undergo 100 percent visual inspection followed by ultrasonic testing (UT) or magnetic particle inspection (MPI) on high-stress mount zones.

Electrical Load Run Testing

Complete electrical panels and motors undergo a 4-hour dry-run amperage draw and thermal stability test prior to factory sign-off.

Certifications & Patents

FAQ

Q: How do I determine the correct abrasive media shape and size for my parts?

A: Media selection depends on part geometry, material hardness, and surface finish requirements. Media must be significantly larger or smaller than all part apertures and slots to prevent lodging. Send sample parts to our testing laboratory for free trial processing and a documented media selection report.

Q: What is the standard lifespan of the polyurethane lining in the work bowl?

A: Under normal multi-shift operating conditions with standard abrasive media, a high-grade 20mm-thick polyurethane lining lasts between 3 to 5 years. Lining longevity is influenced by media abrasiveness, solution pH, and sharp burr impact frequency. Relining services are available at regional service centers.

Q: Can vibratory finishing machines process wet and dry operations in the same unit?

A: Troughs cannot switch directly between wet and dry processes without complete media removal, thorough washing, and drying. Cross-contamination between wet chemical compounds and dry organic media (like walnut shell) ruins the dry polishing process. Dedicated machines are recommended for high-volume distinct operations.

Q: How is wastewater managed during wet mass finishing cycles?

A: Effluent contains metal fines, worn media particulate, and spent chemical compound. Direct discharge into municipal sewage is typically restricted. Systems should be paired with a centrifugal water clarifier or flocculation chemical dosing system to separate solids, allowing water to be recycled or safely drained.

Q: What is the typical lead time for standard versus custom-engineered finishing systems?

A: Standard catalog vibratory bowls and rectangular tubs (capacities from 100L to 600L) ship within 3 to 4 weeks. Custom-engineered multi-stage lines, automated separation conveyors, or specialized chamber designs typically require 8 to 12 weeks depending on engineering approval cycles.

Q: What electrical and utility connections are required on the shop floor?

A: Units require a 3-phase industrial power supply (standard configurations available for 380V/480V, 50/60Hz), a pressurized water supply line with a backflow preventer, and a floor drain or wastewater treatment hookup capable of handling the continuous fluid flow rate.

Q: How do you prevent parts from sticking together or impinging during the cycle?

A: Part-on-part impingement is mitigated by utilizing divider partitions in rectangular tubs, adjusting the amplitude and lead angle of the vibratory motors, or introducing suitable ratio volumes of ceramic or plastic media to cushion and separate the workpieces.

Q: What warranty and technical support coverage is provided for capital equipment?

A: Equipment includes a standard 12-month warranty covering structural frame integrity, motor manufacturing defects, and electrical panel components. Replacement wear parts (springs, lining, screening decks) are stocked regionally for immediate dispatch to minimize line downtime.

Dongguan Xindingsheng Intelligent Grinding Technology Co., Ltd. is one of the most reliable vibratory finishing machine manufacturers and suppliers in China, also supports customized service. Please feel free to wholesale bulk high quality vibratory finishing machine in stock here from our factory. Contact us for pricelist. Automatic Discharging Vibratory Grinding Machine, Horizontal High Efficiency Vibratory Polishing Machine, Magnetic Levitation Polishing Machine
