Multi Function Magnetic Finisher

Dongguan Xindingsheng Intelligent Grinding Technology Co., Ltd. is one of the leading manufacturers and suppliers of multi function magnetic finisher in China, featured by quality products and good price. Please rest assured to wholesale bulk customized multi function magnetic finisher from our factory. For quotation, contact us now.

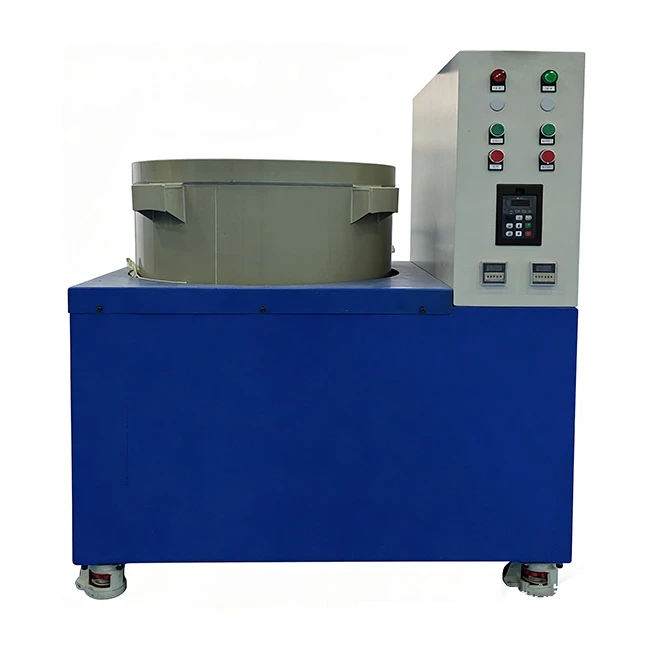

The Multi-function Magnetic Finisher is our top-tier magnetic grinding machine, built for high-volume precision part processing in large factories, automotive part manufacturers, and hardware production bases. It features a high-power electromagnetic system and a 7.2KW industrial motor, offering 50% stronger magnetic force than the 800L model and the largest grinding tank in its series.

This machine solves common mass-production issues like low efficiency and inconsistent quality by using strong magnetic force to drive grinding pins and workpieces at high frequency. It provides all-around finishing-deburring, chamfering, polishing, and cleaning-for both metal and hard plastic parts. It supports 24/7 operation and integrates easily with automated production lines.

Large-scale automotive parts production, stainless steel fastener manufacturing, die-casting operations, electronic component OEMs, engineering machinery small parts, and aerospace component processing.

Suitable Materials: Die-cast alloys (aluminum, zinc, magnesium), medium-to-high hardness metals (stainless steel, iron, copper, titanium), and hard plastic precision parts.

Typical Parts: Auto die-cast parts, stainless steel screws/nuts, electronic connectors, stamped hardware, micro fasteners, and aerospace aluminum parts.

• Variable Speed Control: Adjust frequency from 0–50 Hz to match material and part shape.
• Programmable Timer: Set grinding time up to 9999 hours with multi-stage cycles for unattended operation.
• Forward/Reverse Grinding: Customize rotation timing to reach holes and complex shapes evenly.
• Smart Protection: Auto-alerts or shuts down in case of overload, overheating, low fluid, or system faults.
• Real-time Monitoring: Display shows all working data; compatible with MES for central monitoring.
• Auto Fluid & Temp Control (Optional): Maintains fluid level and temperature for 24/7 runs.
• Auto Start/Stop & Unloading (Optional): Fully automated part handling from grinding to separation.

• High Power & Large Capacity: Handles 16–20 kg per batch with 60% higher efficiency than the 800L model.
• Even Grinding: Magnetic field covers the whole tank, giving consistent finish and over 99.9% quality rate.
• Sturdy Build: Heavy steel base and shock-absorbing feet reduce vibration and noise for 24/7 use.
• Long-lasting Pins: Special alloy pins wear slower, cutting consumable cost by 50% compared to similar models.
• Energy Saving & Eco-friendly: Uses 40% less power than conventional machines; water-based grinding fluid is non-toxic and meets environmental standards.
• Fits Automated Lines: Connects directly to feeding, separating, cleaning, and drying systems.
• Easy to Use: Large touchscreen, anti-clumping pin mixer, wear-resistant tank, and easy-access maintenance points.

• Setup: Fill tank with water and grinding fluid (60:1 ratio). Add pins and run at 35–40 Hz to spread them evenly. Load parts (max 20 kg) via auto feeder.
• Pre-clean Parts: Use a degreasing line to remove oil and dirt from workpieces before grinding.
• Set Parameters: Choose a preset program on the touchscreen or set custom time, rotation cycles, and frequency based on material.
• Start Grinding: Press start. The machine can run unattended with optional auto fluid/temp systems. Monitor remotely every 12 hours.
• Unload & Separate: After grinding, parts and pins are automatically moved to a magnetic separator. Parts go to cleaning; pins return to the tank.
• Maintenance: Check bearings, coils, and moving parts every 24 hours. Lubricate as needed. Replace worn pins in batches. Keep machine clean.

• Safety: Keep hands and tools out while running. Reduce frequency to ≤5 Hz before any tank access. Dry parts soon after grinding to prevent rust.
• Installation: Place on solid concrete floor (≥800 kg/m²). Use a dedicated 380V power supply with proper grounding to avoid interference.
• No Overloading: Do not exceed 20 kg-machine will alarm and stop. Do not disable safety systems.
• Tank Care: Avoid impacts or scratches. Use automatic loaders to protect the tank. Only use original replacement parts.
• If Something's Wrong: Check alarm cause on central monitor. For serious faults, hit emergency stop, cut power, and call a technician.
• Long Storage: Clean and dry pins, seal tank, power off, and protect from dust/moisture. Test all systems before restarting.
• Use Genuine Parts: Only original pins, tank, bearings, and coils ensure performance and safety. Manufacturer provides 24/7 support.
